SCRATCH M5 3D PAS NACK 140 HB AM

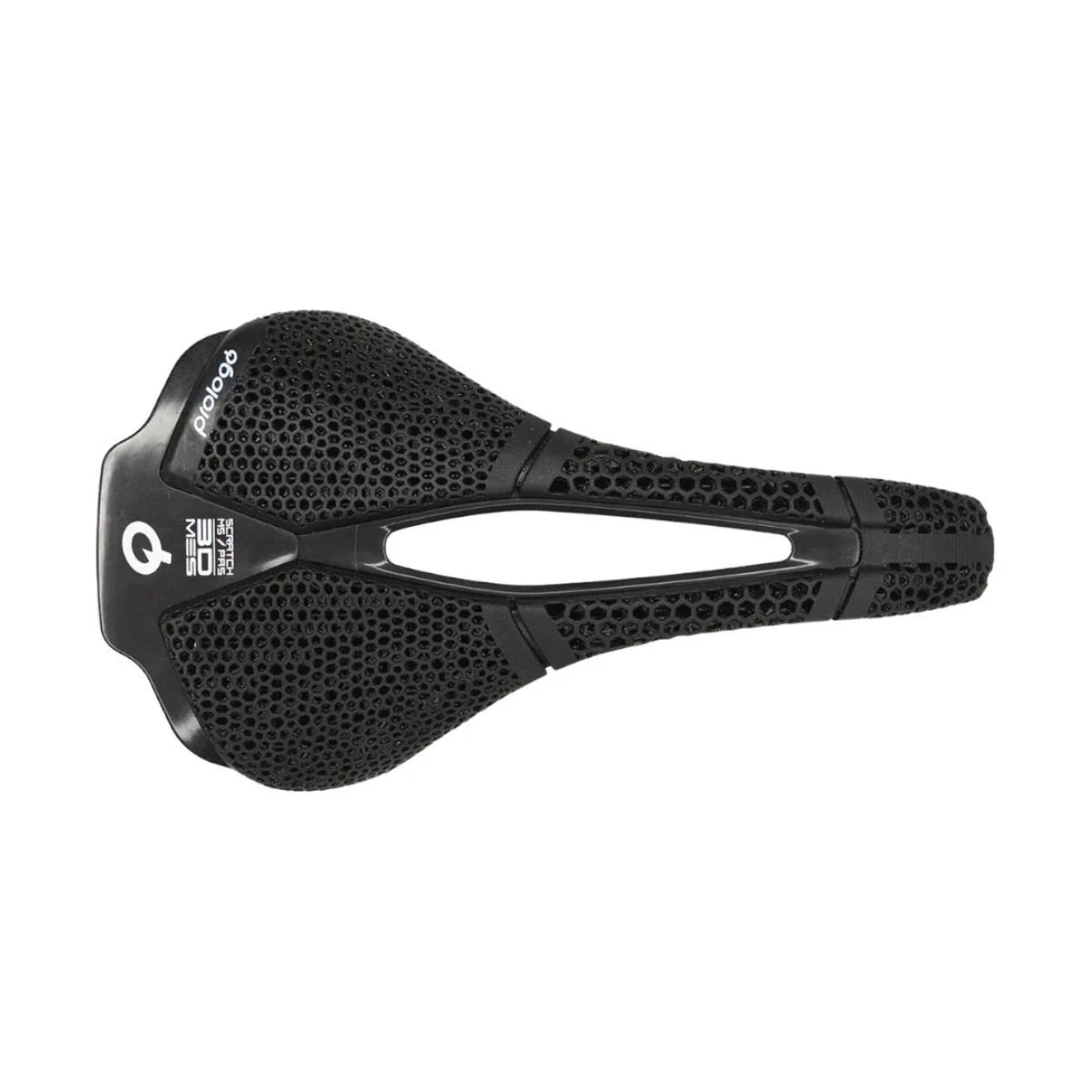

PROLOGO Saddle Scratch M5 PAS 3D 140 mm Nack | black

The SCRATCH M5 PAS 3DMSS is an advanced, racing-inspired multifunctional saddle that offers increased comfort and performance thanks to an innovative 3D printing process. Weighing just 176 g, it is particularly suitable for high-performance cyclists who prioritize the latest technology. The saddle builds on the characteristics of the legendary Scratch M5 PAS and is optimized by a three-dimensional construction. The model is already used by top athletes such as Jonas Vingegaard, Egan Bernal, Sepp Kuss, Wout Poels, John Degenkolk, Romain Bardet and Magnus Cort.

T-shape
The T-shape offers more freedom of movement and positioning on the saddle thanks to a standard length. Developed to guarantee maximum comfort in the area where the thighs rub against the saddle.

MSS Multi-Sector System
Developed in collaboration with the Politecnico di Milano University, it improves comfort and performance. The separate active foams create 5 dedicated zones that work individually and support normal pedaling movement during both the push and pull phases. The round shape of the SCRATCH M5 allows natural rotation of the pelvis and creates stability and support for the lumbar spine. it also favors pressure distribution over a larger surface area.

Base material, long carbon fiber
This material, in combination with the Tirox rail and active foams, provides excellent elasticity and vibration damping for absolute comfort.

Nack Rail
Nano carbon fiber frame which consists of a material combination of carbon fibers, Kevlar and aluminum threads in the seatpost clamping area. In the production process called Braided Carbon Rail (BCR), the different materials are perfectly fused. The result is a balanced structure with high resistance.

Technical data:

Area of application: Road bike
Saddle shell: Carbon Fiber Injection
Frame: Nack (carbon)

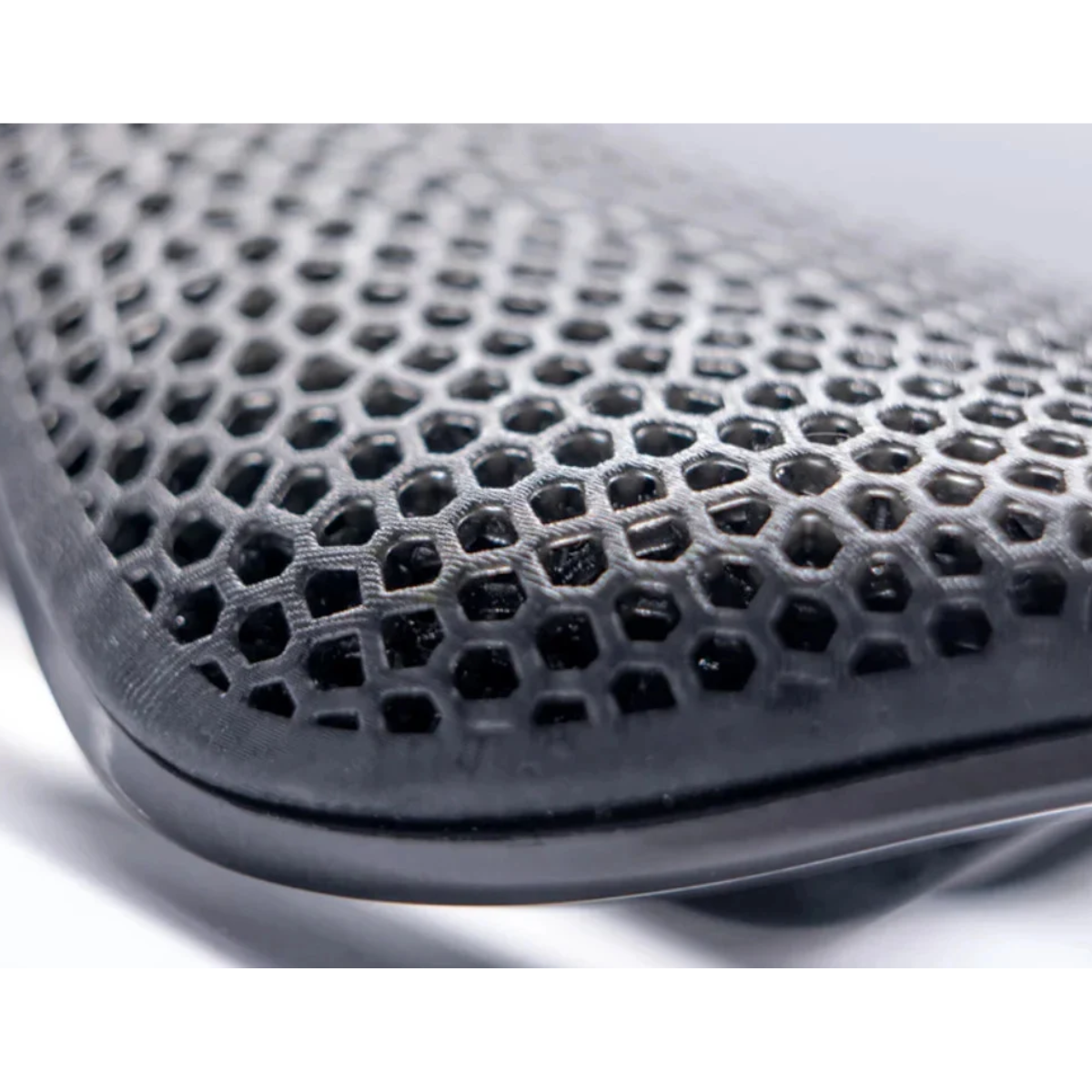

Saddle cover: open 3D printed foam structure
Length: 250 mm
Width: 140 mm
Height: 55 mm (lower edge of frame/upper edge of shell)
Strut diameter: oval 7 x 9.3 mm
Adjustment range saddle frame: 60 mm
maximum rider weight: n.a.
max. permissible tightening torque: 9 Nm
Finish: 3D
Color: black

Weight according to manufacturer: 176g

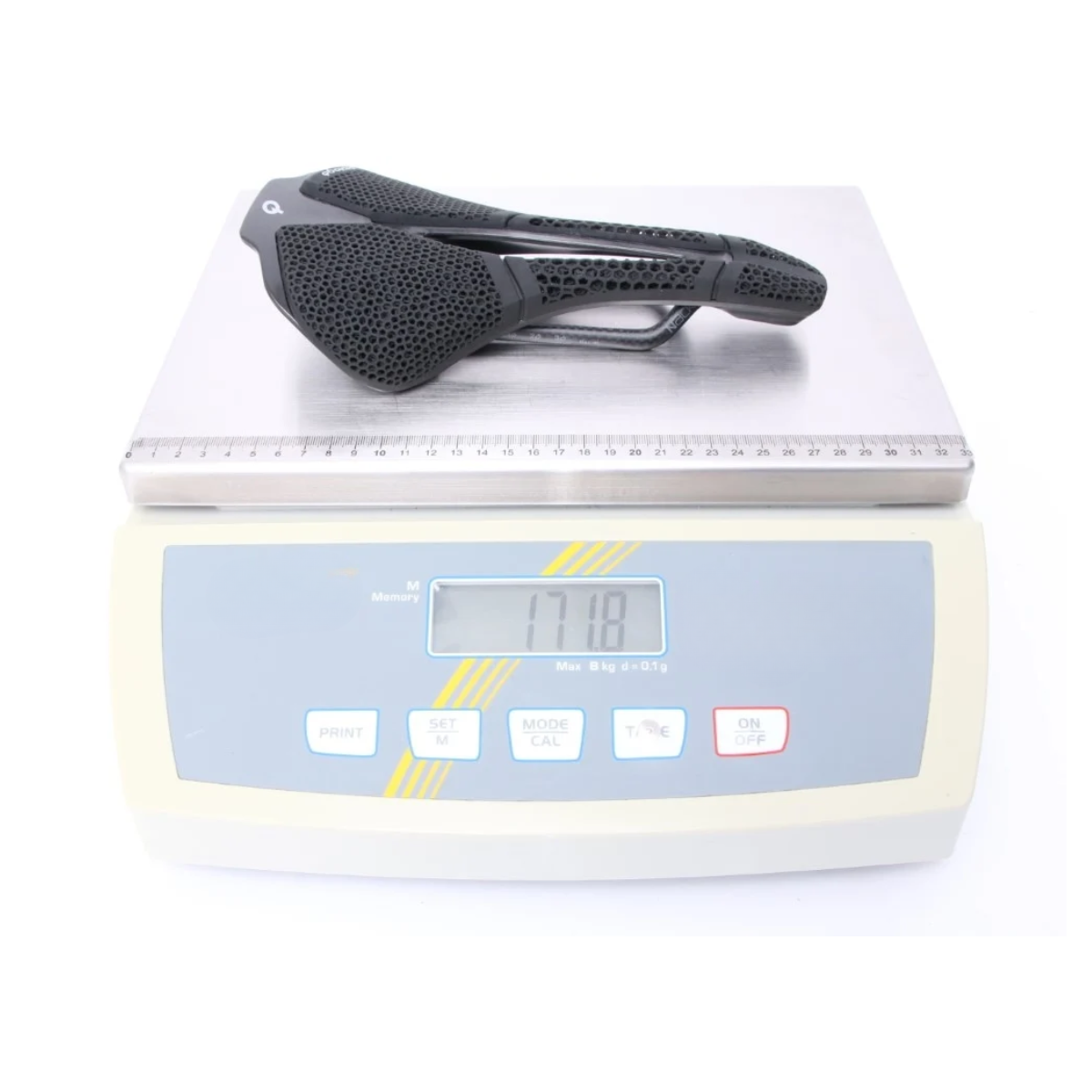

Weight self-weighed: 172g


Scope of delivery: 1x Saddle Scratch M5 PAS 3D 140 mm Nack
