NAGO R4 NACK 137 HARDBLACK AM

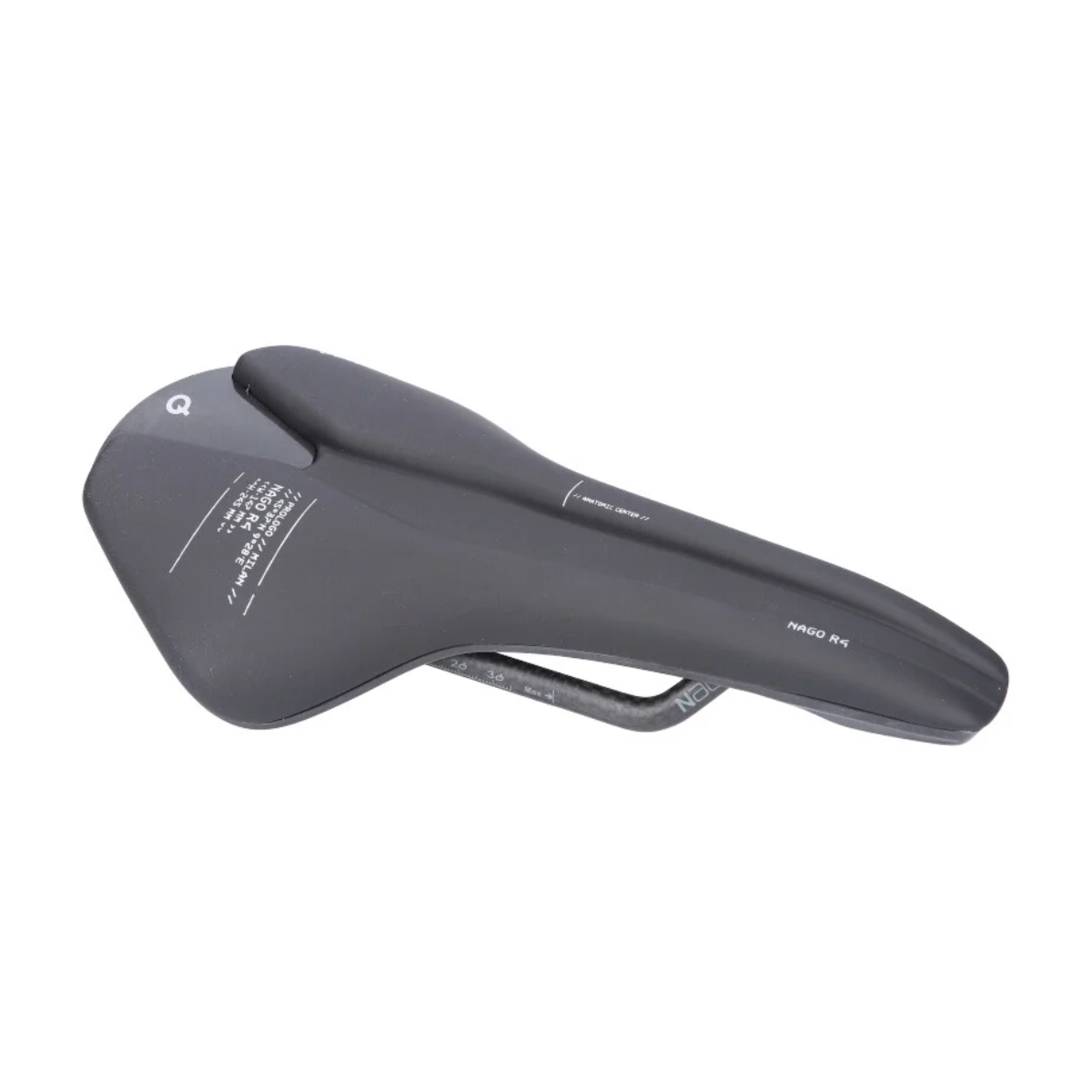

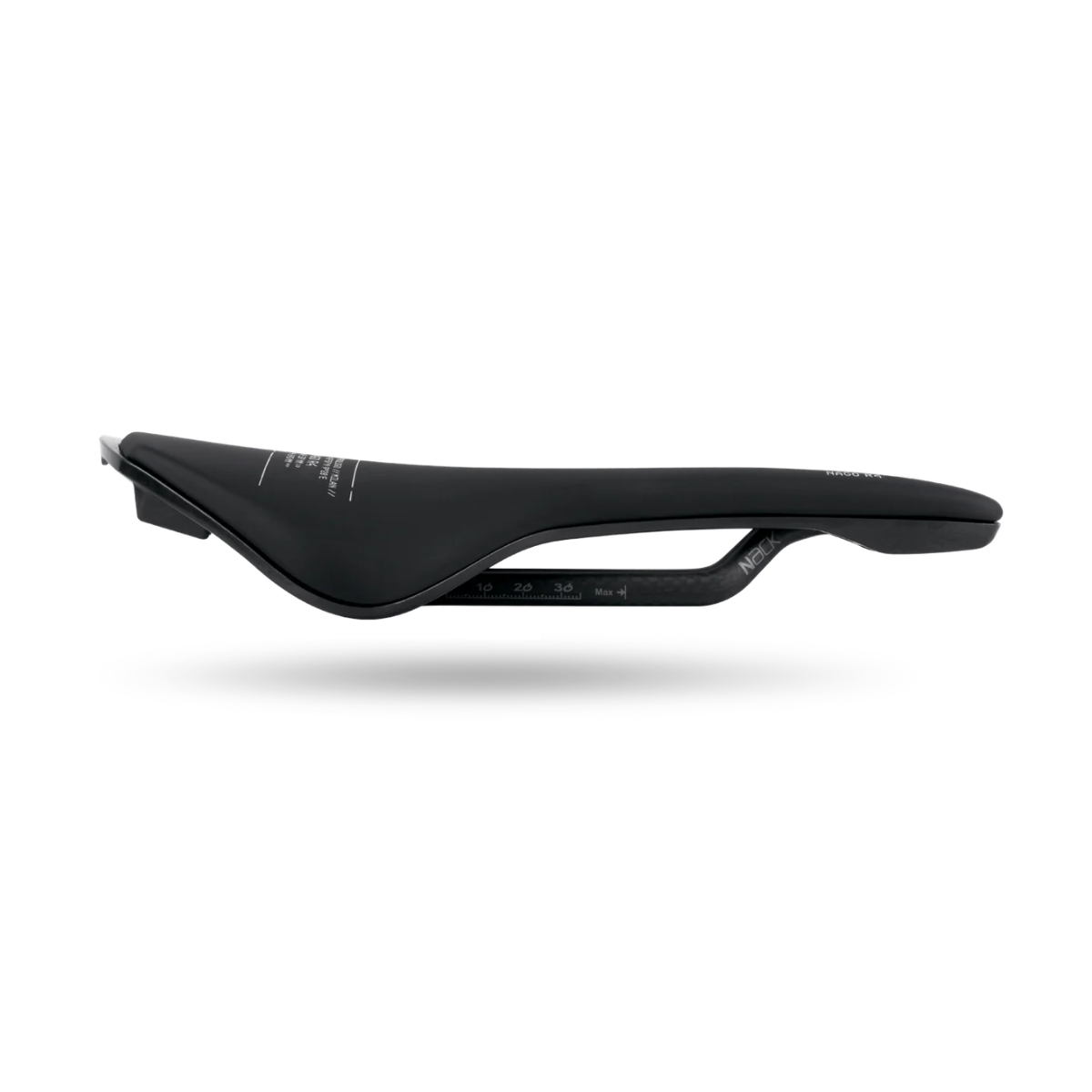

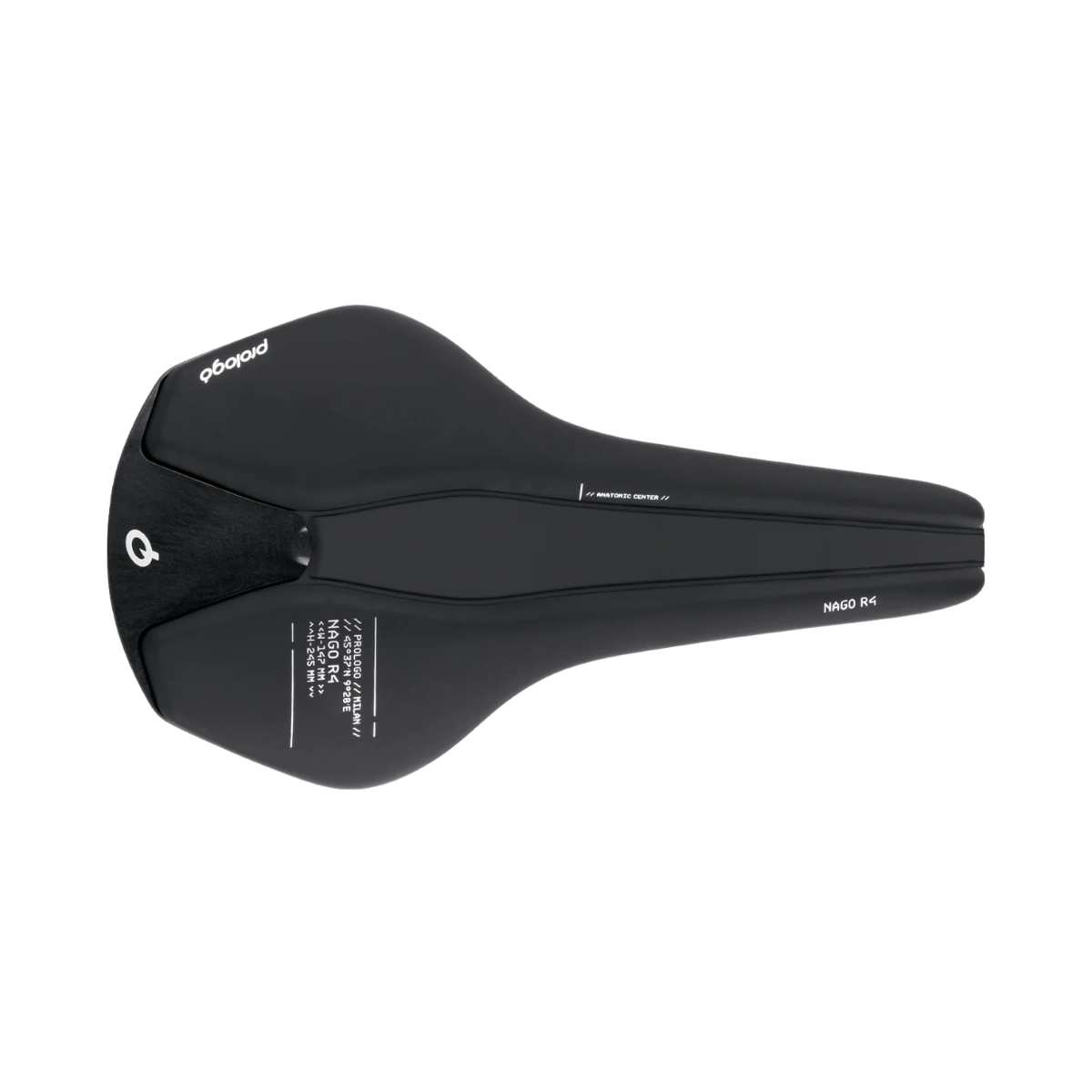

PROLOGO saddle Nago R4 147 mm Nack | hard black

The NAGO R4 (Redesign 4) is the evolution of the legendary NAGO, the Prologo saddle from 2008 that has already won a Giro d'Italia and numerous classics over the years. It was developed based on the needs of the professional teams supported by Prologo and perfected thanks to the "Pressure Map MyOwn" tests to meet the needs of all cyclists looking for maximum performance and comfort even on long rides. Thanks to its versatility, it covers a wide range of uses and is suitable for both amateurs and professionals.

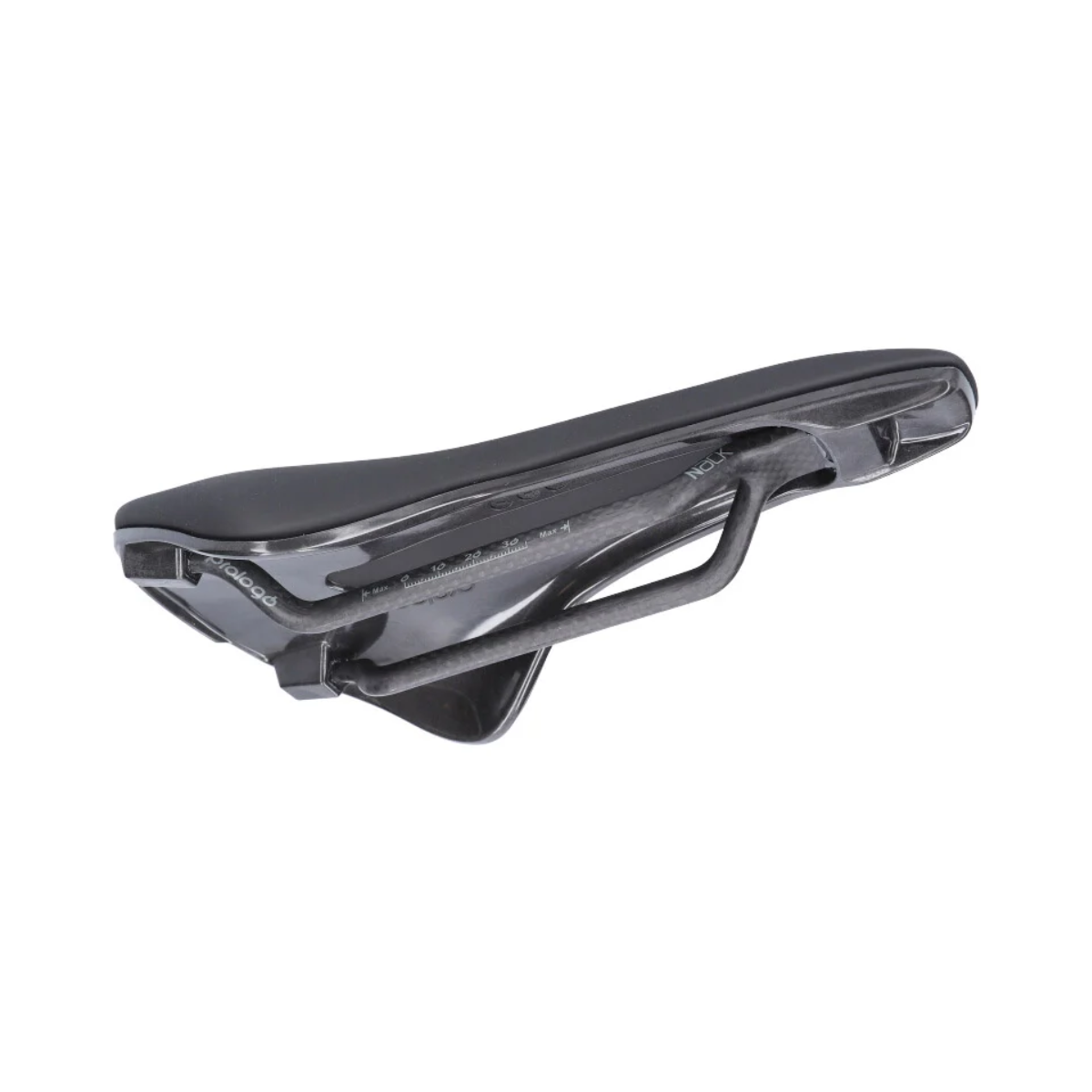

Nack Rail
Nano carbon fiber frame which consists of a material combination of carbon fibers, Kevlar and aluminum threads in the area of the seat post clamp. In the production process called Braided Carbon Rail (BCR), the different materials are perfectly fused. The result is a balanced structure with high resistance.

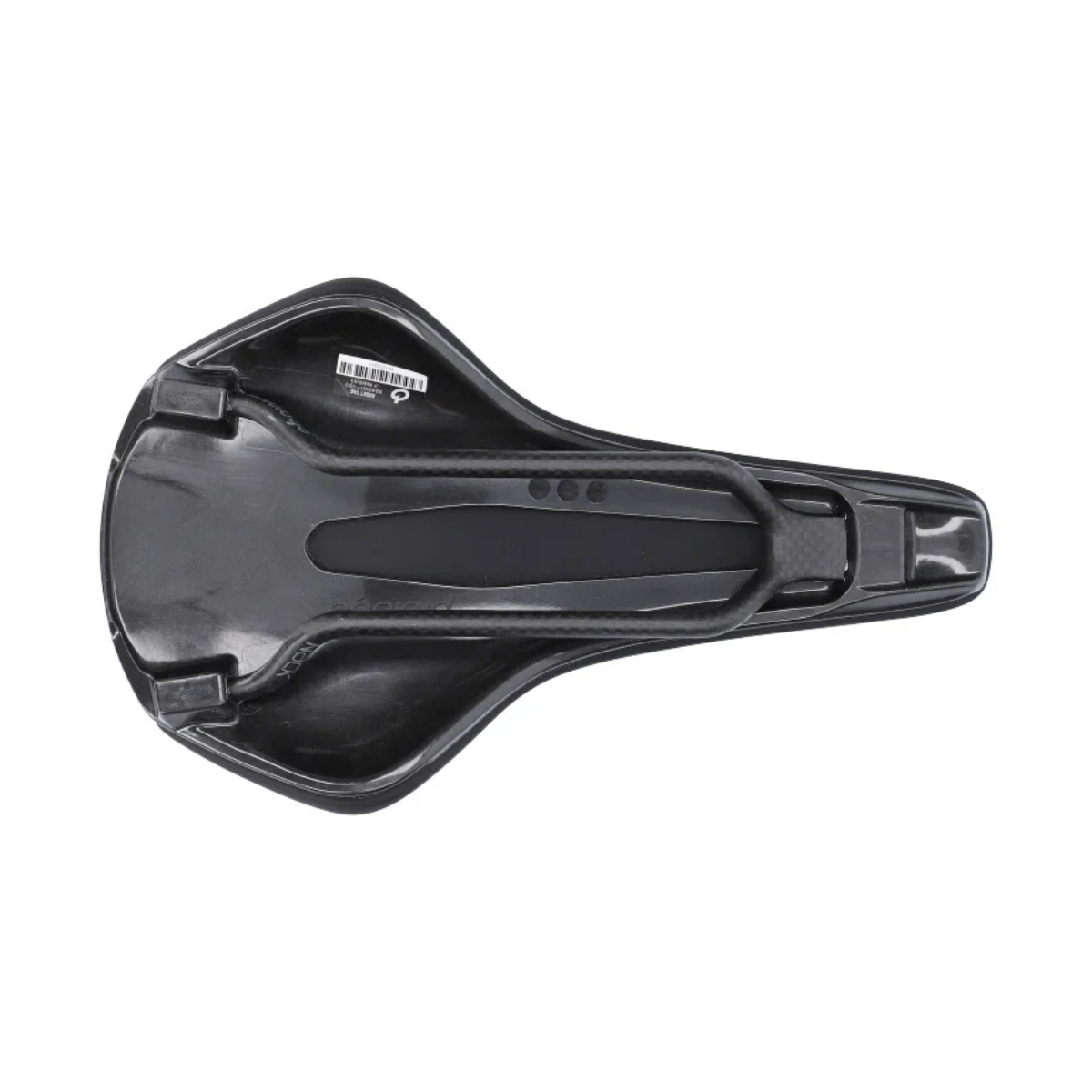

Carbon Fiber Injection saddle shell
A manufacturing process developed by Prologo to create an injection-molded saddle shell made of carbon fibers, which forms the basis of the saddle. This process increases the stability of the saddle shell with 15% less weight and improves the surface of the entire saddle.

Technical data:

Area of application: Road bike
Saddle shell: Carbon Fiber Injection
Frame: Nack (carbon)
Saddle cover: Microfiber
Length: 245 mm

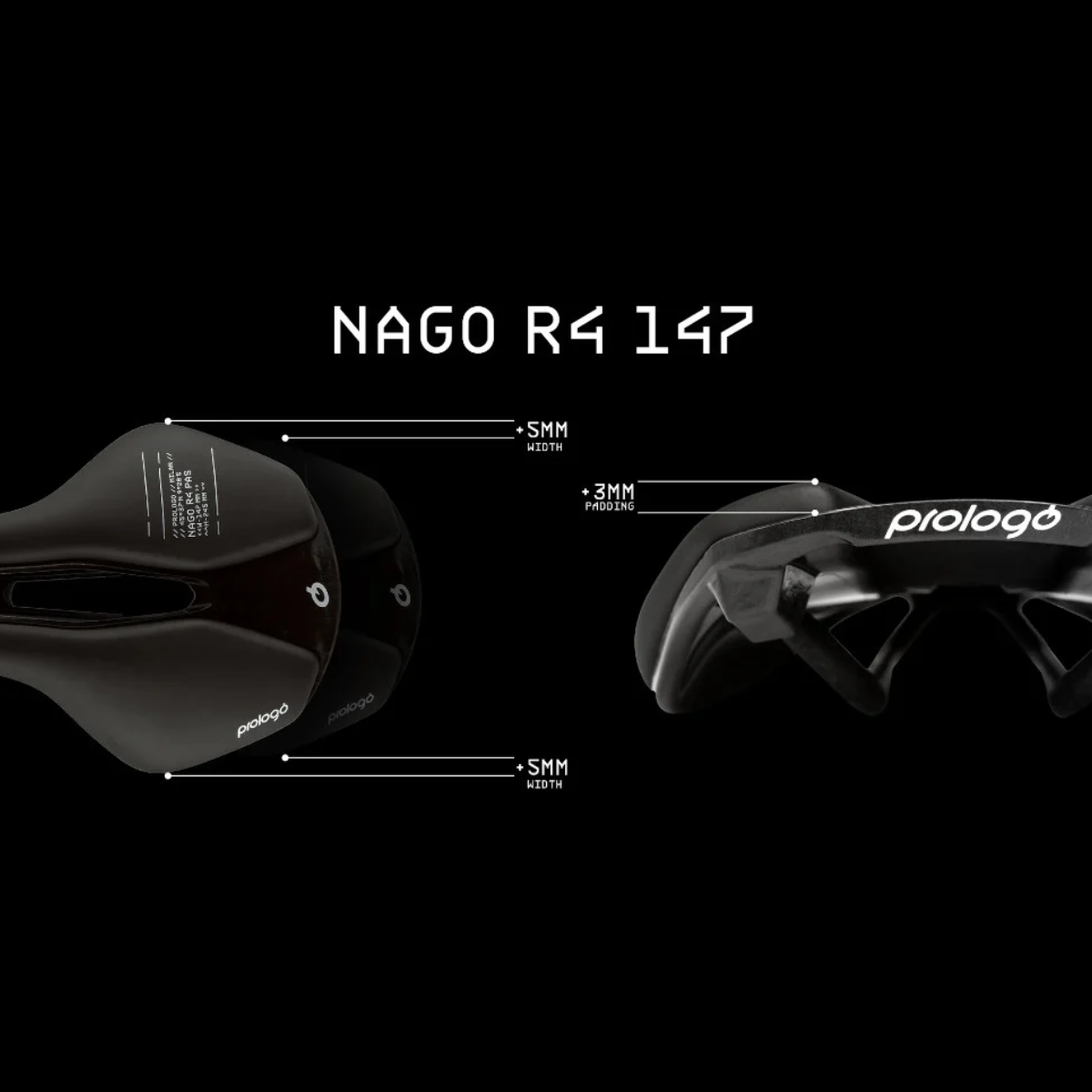

Width: 147 mm
Height: 49 mm (lower edge of frame/upper edge of shell)
Strut diameter: oval 7 x 9.3 mm
saddle frame adjustment range: 61 mm
maximum rider weight: n.a.
max. permissible tightening torque: 9 Nm
Finish: synthetic leather
Color: black

Weight according to manufacturer: 158g
Weight self-weighed: 163g

Scope of delivery: 1x saddle PROLOGO Nago R4 147 mm Nack
