METRON 5D ACR EVO INTEGRATED ROAD HB 130MMX380W B4,SB-KO-I33 0S/DI2/ACR/L

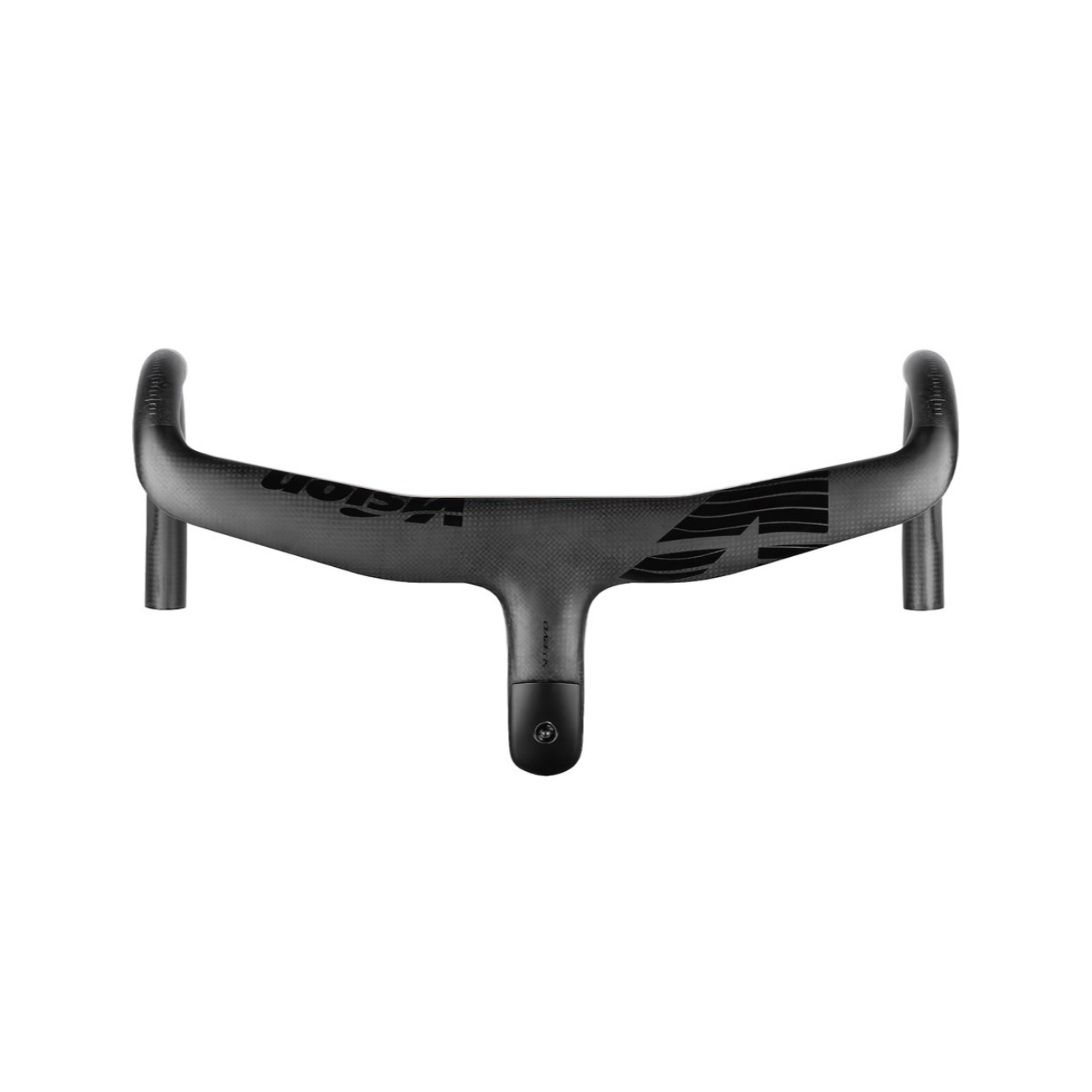

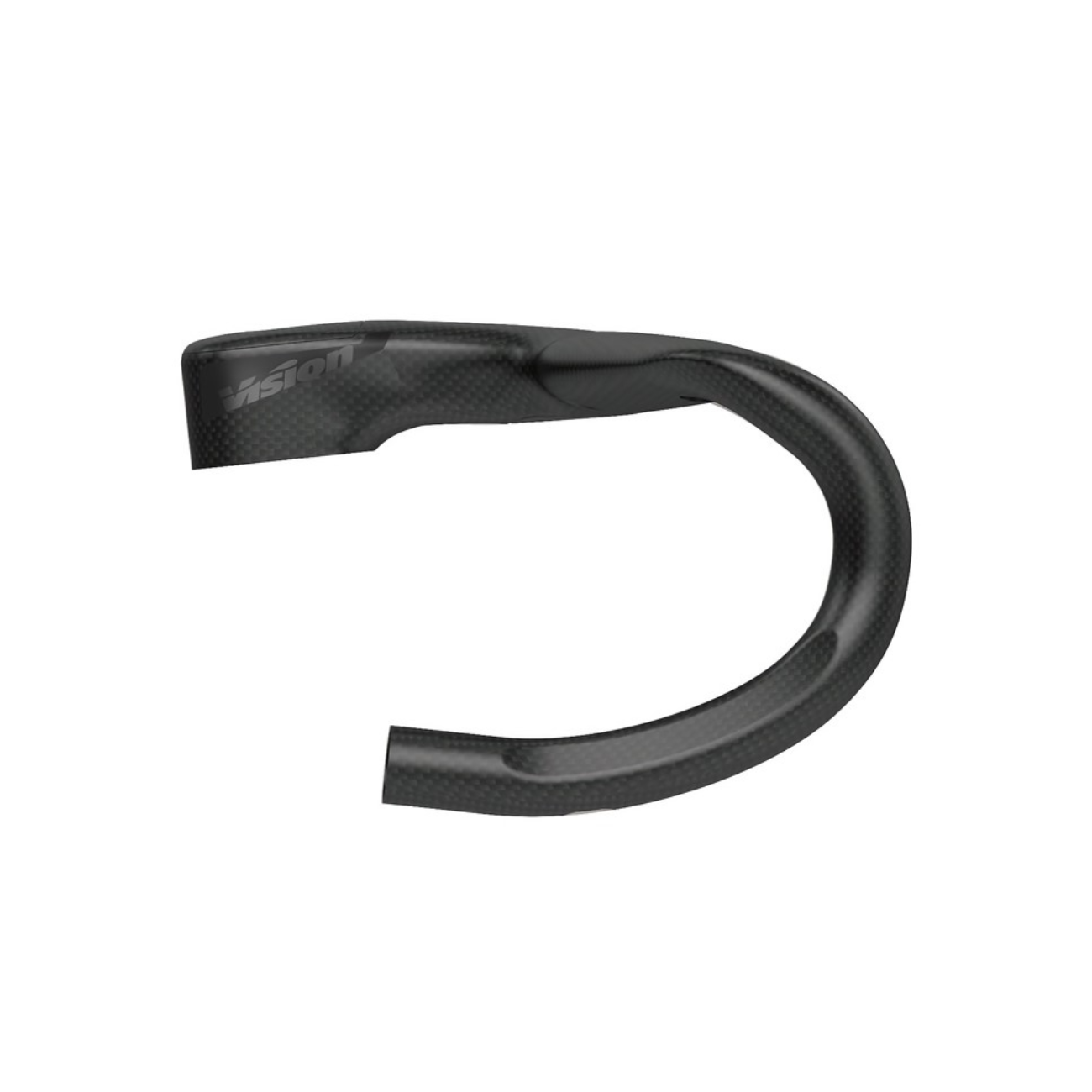

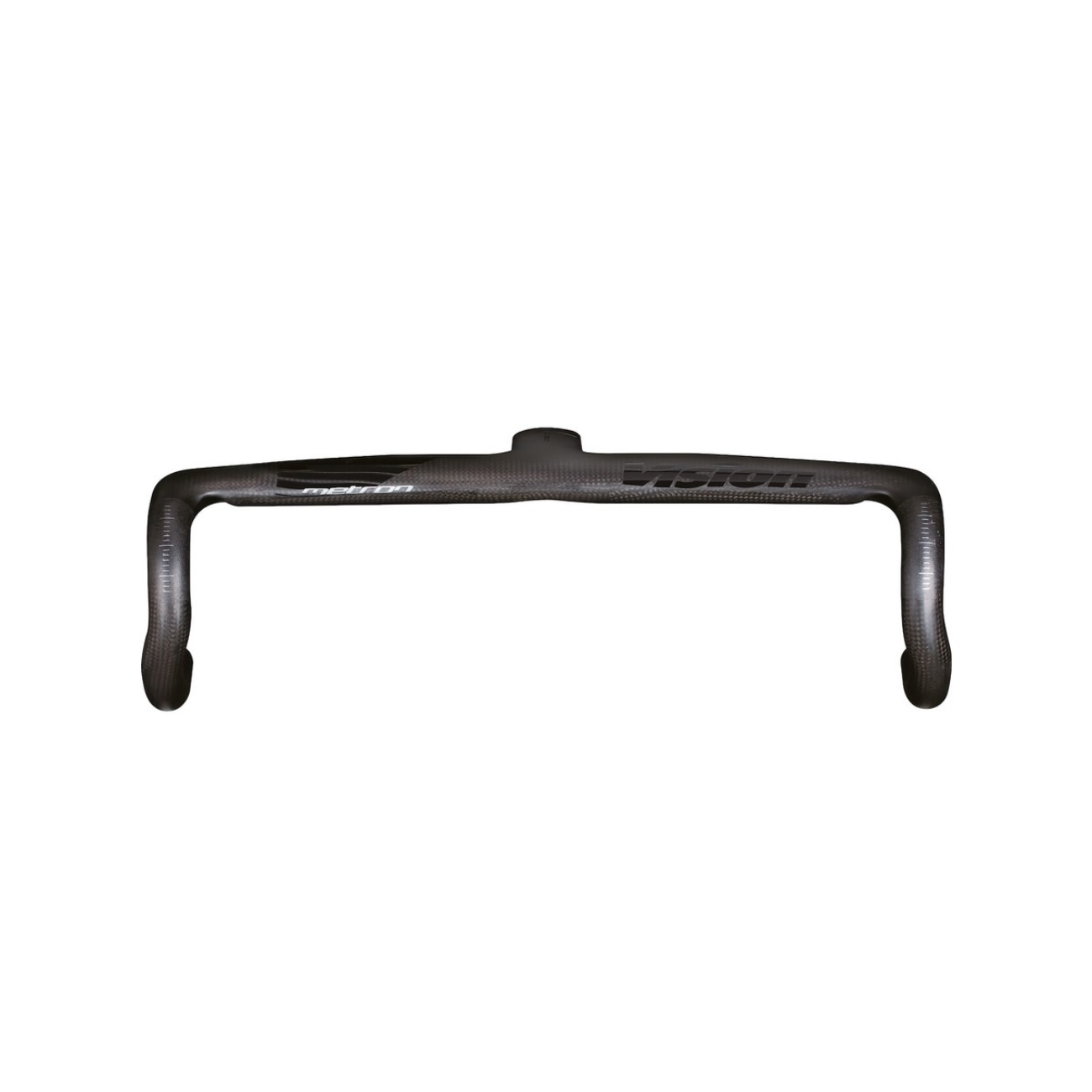

VISION Metron 5D ACR EVO stem/handlebar unit | size L

VISION is one of the leading brands in professional cycling. Founded in 1990, the company is known for its pioneering use of carbon fibers and the development of aerodynamic shapes. VISION sponsors major teams such as Bahrain Victorious, EF Education Nippo and Visma Lease a Bike, and works with the biggest names in cycling to create groundbreaking components that enhance performance.

The VISION Metron 5D has been on the road for many years and can already boast victories in three Grand Tours and five Monuments. This makes the VISION Metron 5D the most victorious handlebar in professional road cycling. The new EVO version refines the tried and tested one-piece aero cockpit. A reduced height in the clamping area offers less surface area for the wind to attack and reduces the weight. The handlebars now absorb more vibrations thanks to a realigned arrangement of the carbon fibers in the structure. The shape of the handlebars supports a natural wrist position, opens the chest and elbows and thus enables better breathing when climbing. The drops are offset outwards by 5 mm to create a more stable platform and enable a quick change from the upper to the lower handlebar if required. For effective aerodynamics and a tidy look, all brake lines and shift cables are fully integrated into the handlebars.

The VISION Metron 5D EVO is available in two different sizes. Riders with small or medium-sized hands reach for the standard size L. The new XL version with a deeper profile on the wings is aimed at riders with large hands and offers more comfort thanks to extended hand contact surfaces in the area of the brake levers and a more stable grip on the upper handlebar. The cockpit is available in various stem lengths and handlebar widths to meet the needs of a wide range of professional and leisure riders.


Technical data:

Area of application: road bike, cyclocross, gravel

Material: carbon
Upper handlebar shape: aero
Lower link shape: compact
Cable routing: fully integrated routing through handlebar-stem unit and head tube
Stem length: 90 mm, 100 mm, 110 mm, 120 mm, 130 mm, 140 mm
Handlebar width top link (center - center): 380 mm, 400 mm, 420 mm, 440 mm
Handlebar width lower link (outer - outer): 410 mm, 430 mm, 450 mm, 470 mm
Reach: 80 mm
Drop: 125 mm
Offset: 5 mm
Front sweep: 10°
Stem angle: -6°
Fork steerer diameter: 1 1/8" (with enclosed adapter) or 1 1/4"
max. system weight: n/a
max. tightening torque 6 Nm
Finish: 3K Carbon
Color: black

Weight according to manufacturer: 320g(size L, 420 mm / 110 mm)

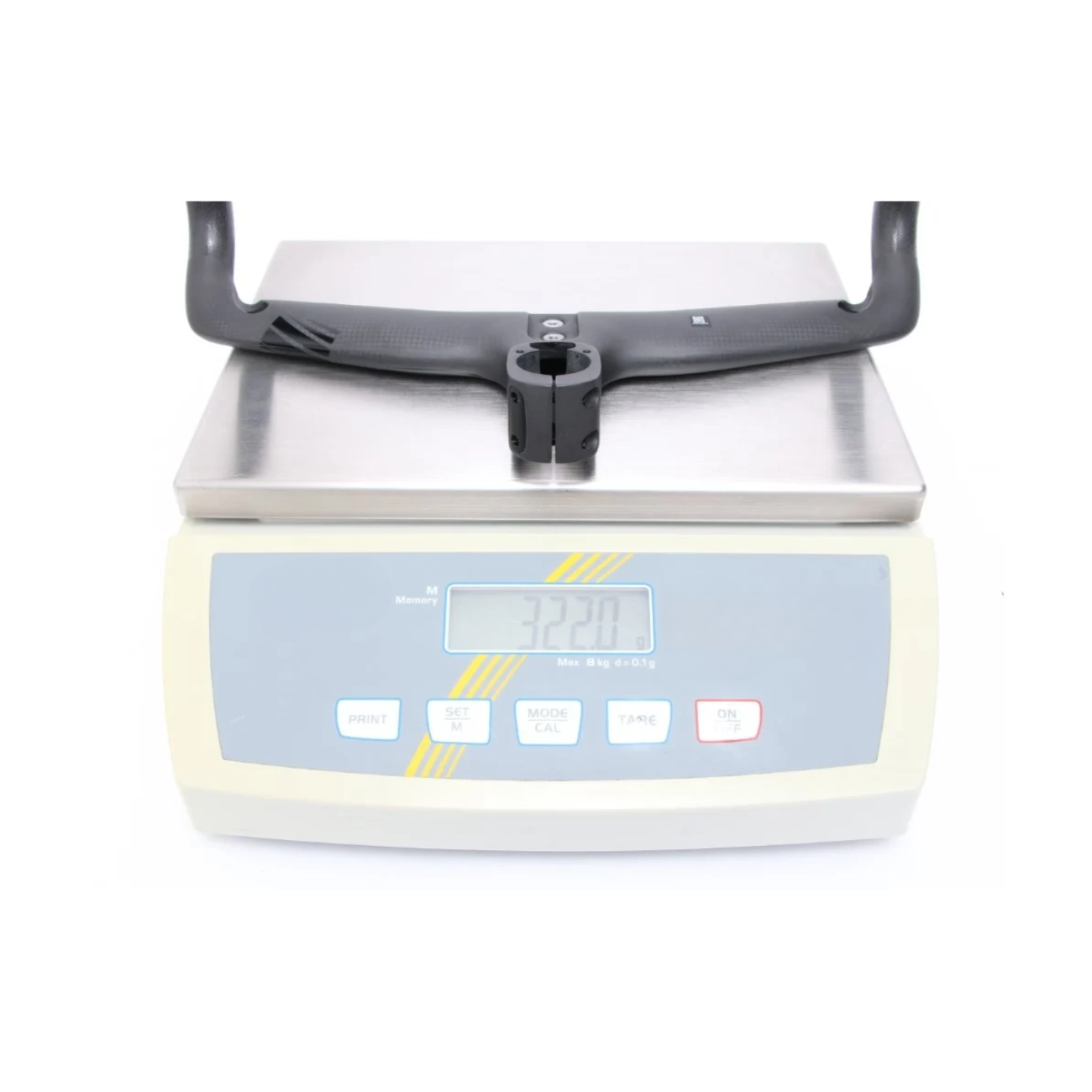

Weight self-weighed: 322g (size L, 380 mm / 90 mm)

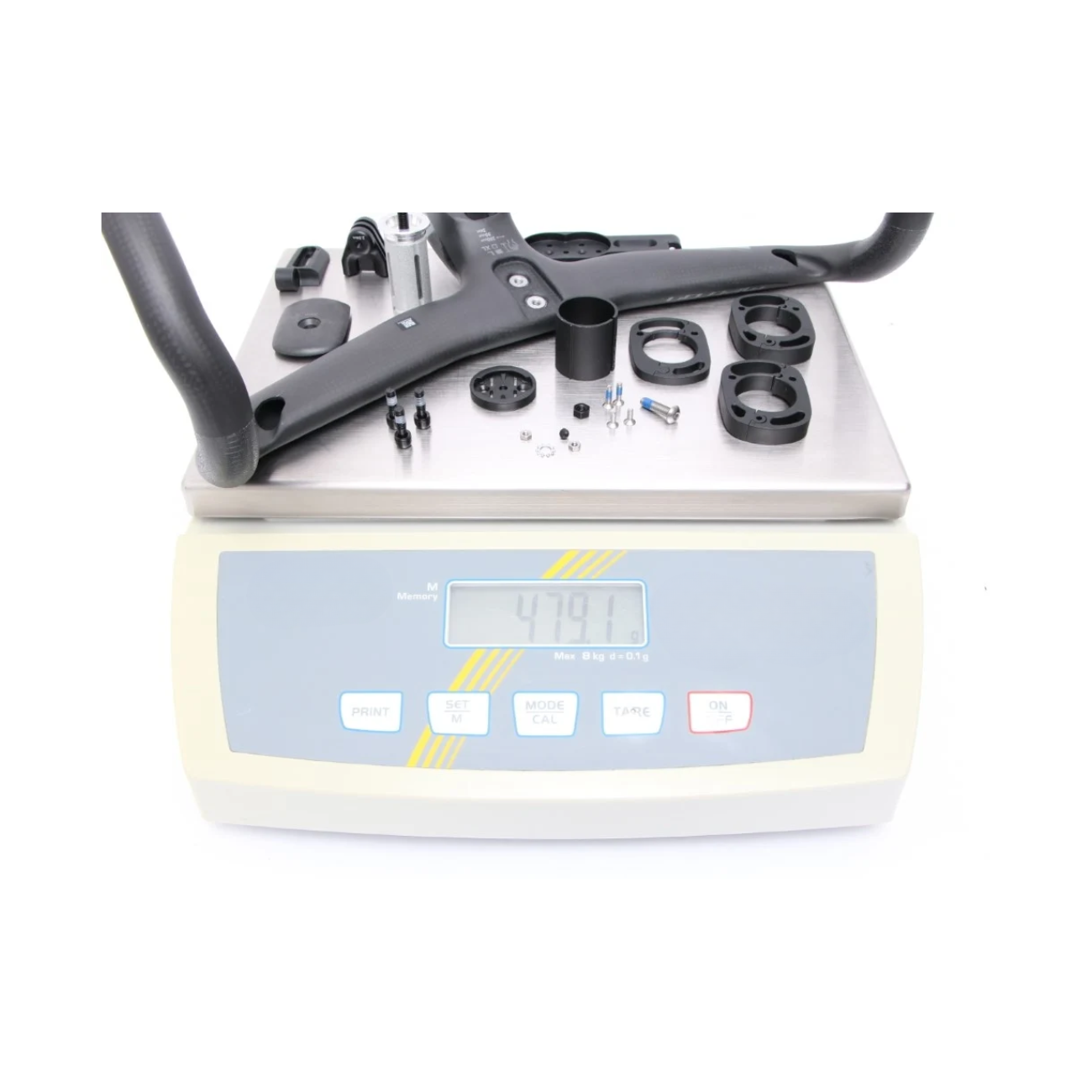

Scope of delivery:

1x Vision Metron 5D ACR EVO stem/handlebar unit
1x Ahead cap + bolt
1x Spacer 5 mm (for 1 1/8" steerer tube)
1x Spacer 10 mm (for 1 1/8" steerer tube)
1x expander
1x adapter for 1 1/8" steerer tube
1x handlebar mount for Garmin & GroPro + screws
